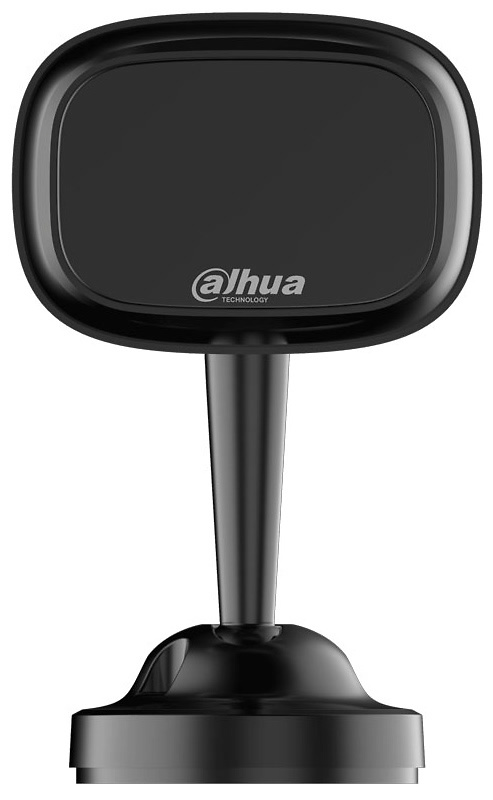

DAE-CDM5110-CYP | DAHUA - Cámara de Supervisión para Conductor | 720P | Lente Fija

Camera

Image Sensor

1/4" CMOS

Max. Resolution

1280 (H) × 720 (V)

Electronic Shutter Speed

NTSC: 1/30 s–1/10,000 s
PAL: 1/25 s–1/10,000 s

Minimum Illumination

0.1 lux

IR Distance

3 m (9.84 ft)

IR On/Off Control

Strobe

IR LED Number

1

Lens

Focal Length

4 mm

Aperture

F1.4

Field of View

H: 61.8° V: 37.5°

Iris Control

Fixed

Video

Resolution

720 p (1280 × 720)

Frame Rate

50 Hz: 1280 × 720@25 fps
60 Hz: 1280 × 720@30 fps

BLC

Yes

HLC

Yes

Gain Control

Auto

Noise Reduction

2D/3D

Certifications

Certification

CE; FCC

General

Power Supply

9 V–16 V DC

Power Consumption

< 2.5 W

Environment

Operating Conditions

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

< 90% (RH) (non-condensing)

Ingress Protection

IP54

Construction

Package Dimensions

165.0 mm × 80.0 mm × 90.0 mm (6.50" × 3.15" × 3.54")

Product Dimensions

107.3 mm × 64.0 mm × 27.7 mm (4.22" × 2.52" × 1.09")

Net Weight

191.6 g (0.42 lb)

Gross Weight

237.0 g (0.52 lb)

Casing

Cover: Plastic
Rear: Metal
