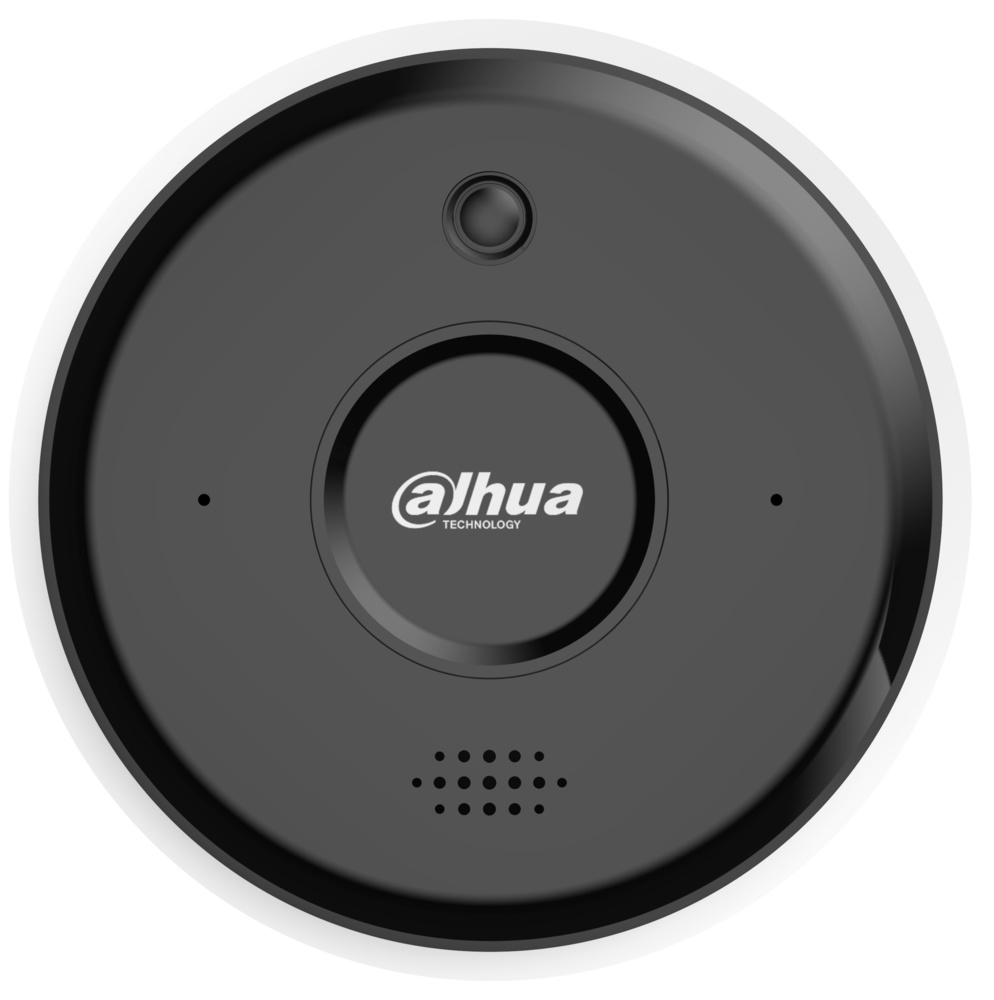

DHI-HY-SAV849HAP-E | DAHUA - Cámara IP con sensor IR AI-fire | Incorpora micrófono y altavoz | Supervisión inteligente: Detección de llama | Cobertura del sensor de humo de 30~60 m2

Smoke Detector

Indicators

Standby: Green indicator flashes once per minute

Fault: Red indicator flashes once per minute

Alarm: Red indicator flashes once per second

Self-testing: Red indicator flashes once per second

Protection Area

30 m2–60 m2

Operating Principle

Photoelectric

Alarm Method

Sound and LED Indicator

Power

12V DC/PoE and 3V lithium battery

Operating Current

≤ 30uA (Camera excluded)

≤ 300mA (Camera included)

Back-up Battery Life

＞ 3 years

Alarm Classification

Smoke alarm, fault alarm, low battery alarm

Alarm Sound Pressure

≥ 80 dB (A) @ 3 m (9.84 ft)

Network Camera

Appearance

Circular

Image Sensor

1/2.7" CMOS

Max. Resolution

2592 (H) × 1944 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3s~1/100000s

Minimum Illumination

0.007Lux (color)

0.003Lux (dark)

0Lux (IR)

S/N Ratio

＞ 56 dB

Illumination Distance

Distance up to 20 m (65.62 ft)

Illuminator Number

2 (IR LED)

Lens

Lens Type

Fixed-focal

Mount Type

M8

Focal Length

2.0 mm

Aperture

F2.0

Field of View

Horizontal: 144°; Vertical: 92°; Diagonal: 179.6°

Iris Control

Fixed

Close Focus Distance

0.2 m (0.66 ft)

Artificial Intelligence

AI Event

Flame detection

Video

Image Setting

Brightness; contrast; sharpness; saturation; gamma

OSD

Channel/time/place/voltage of back-up battery

Video

Manual record; external alarm; alarm video record; timing record

Micro SD Card

Max. 256 GB

Compression

H.265; H.264; H.264H; H.264B

Smart Codec

Smart H.265+/ Smart H.264+

Frame Rate

Main stream:

2592×1944 (1 fps-20 fps)

2688×1520 (1 fps–25/30 fps)

2560×1440 (1 fps–25/30 fps)

2304×1296 (1 fps–25/30 fps)

1920×1080 (1 fps–25/30 fps)

Sub stream:

D1 (1 fps–20 fps)

D1 (1 fps–25/30 fps)

Third stream:

1920×1080 (1 fps-17/24 fps)

Video Bit Rate

H.264: 32 Kbps–10240 Kbps

H.265: 12 Kbps–7168 Kbps

Day/Night

Auto (ICR)

BLC

Yes

HLC

Yes

WDR

90 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Default Frame Rate under Default Resolution

2048 Kbps (2688 × 1520)

Defog

Yes

Image rotation, mirroring, flipping

Yes

Privacy Masking

8 areas

Language

English; TradChinese; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian;Vietnamese; Arabic; SpanishEU; Hebrew; Thai; Bahasa Indonesia

Audio

Audio Interface

Yes

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; AAC; G.723

Audio Sampling Frequency

8KHz/16KHz/32KHz/48KHz/64KHz

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; smart motion detection; audio detection; flame detection; smoke detected alarm; fault alarm; smoke alarm disconnected; low battery alarm

Network

Communication

1 RJ-45 PoE 10M/100M Ethernet ports

Protocol

HTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTP

Interoperability

ONVIF; MileStone; Genetec; CGI; PISA

User

10 channels at most

Storage

FTP; SFTP; Micro SD card (256G); NAS

Browser

IE7 and newer versions; Chrome 8+; Firefox 3.5+; Safari 5+

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1X; controlled network access

Certification

Certification

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input Interface

2 channels In: 5mA 5V DC

Alarm Output Interface

2 channels Out: 300mA 12V DC

RS 485 Port

1 channel

Electrical

Operating Power

Adapter: 12V DC(±25%); PoE: 802.3af

Power Supply

DC12V+PoE

Power Consumption

Basic power consumption: 2.1W (12V DC); 2W (PoE)

Max. power consumption (ICR + IR LED intensity): 4.9W (12V DC); 4.8W (PoE)

Environmental

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

0%–95% RH (non-condensing)

Construction

Casing

Plastic

Product Dimensions

Φ120 mm × 79 mm (Φ4.72" × 3.11" )

Package Dimensions

164 mm × 153 mm × 111 mm (6.46" × 6.02" × 4.37")(L × W × H)

Net Weight

442 g ( 0.98 lb)

Gross Weight

613 g ( 1.35 lb)

Installation

Ceiling mount

Power Adapter

Excluded

Lens

Included
