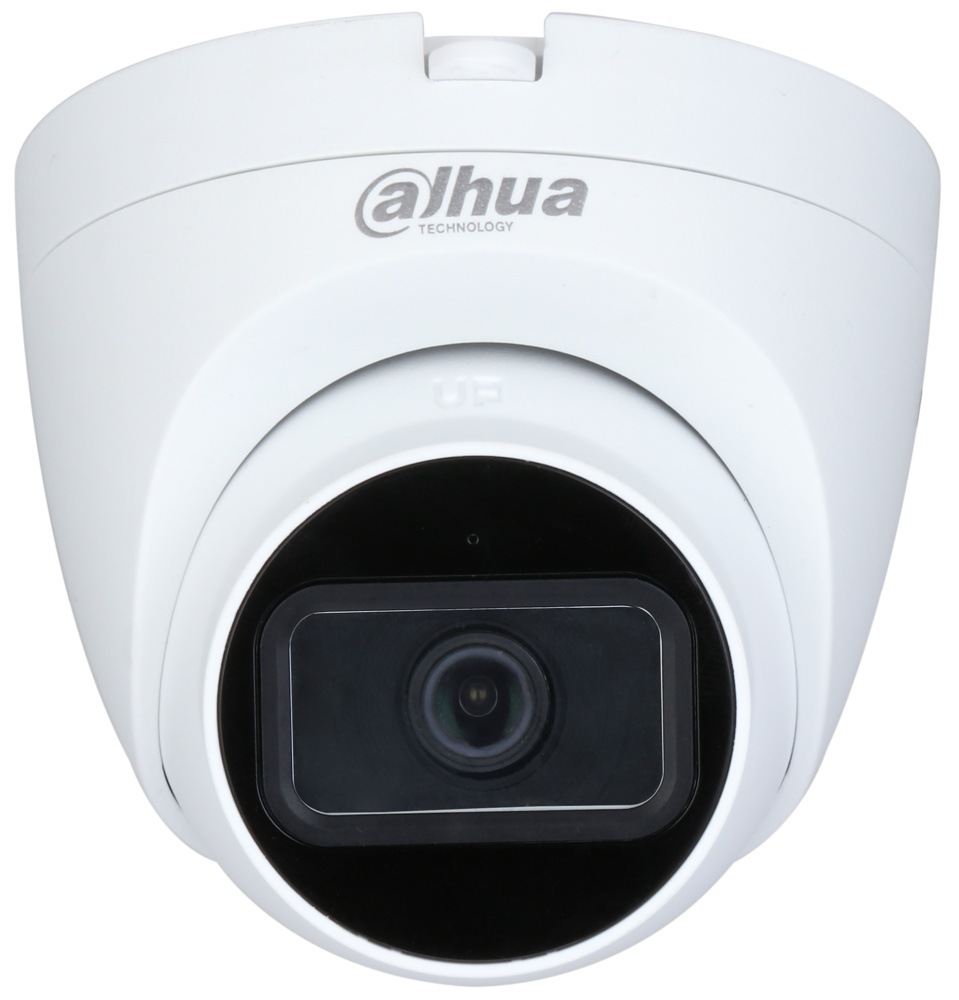

HAC-HDW1231TRQP-A-0280B | DAHUA - Cámara domo 4 en 1 | 2 Megapixel | Lente fija Gran Angular | Leds IR 25 metros | Micrófono integrado

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.002 Lux/F1.6, 30 IRE, 0 Lux IR on

Illumination Distance

25 m (80 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 107°; V: 56°; D: 127°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.1 m (3.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m

(144 ft)

17.5 m (57.4 ft)

8.8 m

(28.9 ft)

4.4 m

(14.4 ft)

Frame Rate

CVI:
PAL: 1080P@25 fps; NTSC: 1080P@30 fps;
AHD:
PAL: 1080P@25 fps; NTSC: 1080P@30 fps;
TVI:
PAL: 1080P@25 fps; NTSC: 1080P@30 fps;
CVBS:
PAL: 960 × 576H; NTSC: 960 × 480H

Resolution

1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/WDR/HLC

WDR

130 dB

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

12V ±30% DC

Power Consumption

Max 2.8 W (12V DC, IR on)

Environment

Operating Temperature

–40°C to +50°C (–40°F to 122°F); < 95% (non-condensation)

Storage Temperature

–40°C to +50°C (–40°F to 122°F); < 95% (non-condensation)

Structure

Casing

Plastic throughout the whole casing

Camera Dimensions

Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66")

Net Weight

0.17 kg (0.37 lb)

Gross Weight

0.23 kg (0.51 lb)
