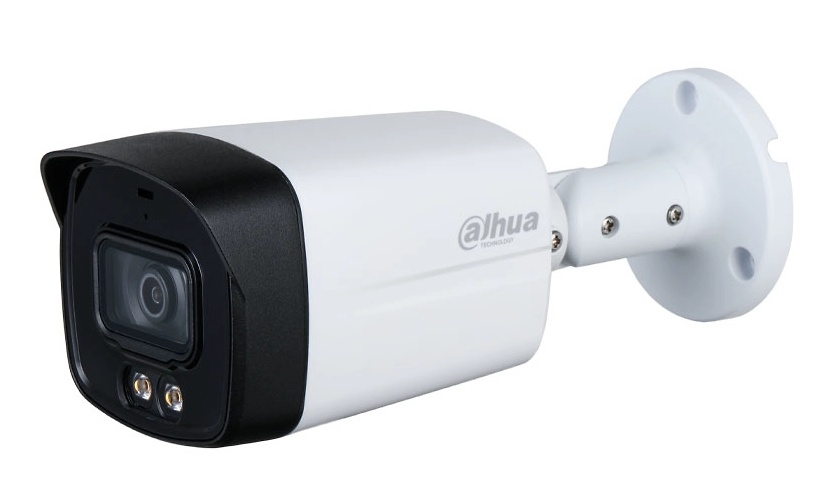

HAC-HFW1500TLMP-IL-A-0280B-S2 | DAHUA - Cámara Bullet 4 en 1 | 5 Mpx | Lente fija Gran Angular | Smart Dual Light 40m | Micrófono integrado

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Warm light);2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 106°; V: 56°; D: 125°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56 m

(183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

2D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.5 W (12 VDC, WLED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal front cover + plastic rear barrel + metal bracket

Product Dimensions

198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3")

Net Weight

0.3 kg (0.66 lb)

Gross Weight

0.42 kg (0.93 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
