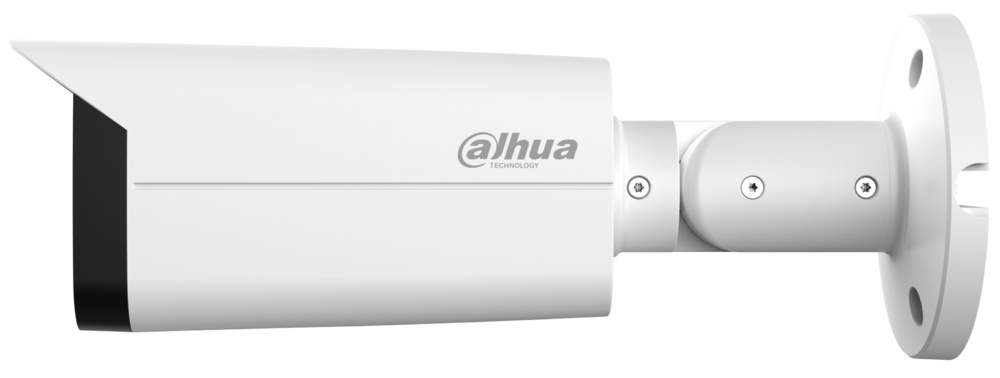

HAC-HFW1509TUP-Z-A-LED-27135-S2 | DAHUA - Cámara Bullet 4 en 1 Full Color| 5 Mpx | Lente motorizada | Smart Light 60 metros

Camera

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.2, 0 Lux White Light on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

4

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.2

Field of View

H: 35°–112°;
V: 19°–58°;
D: 40–137°

Iris Type

Fixed iris

Close Focus Distance

1.5 m (4.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

65.2 m

(213.9 ft)

26 m

( 85.3 ft)

13 m

(42.7 ft)

6.5 m

(21.3 ft)

13.5 mm

186.6 m (612.2 ft)

74.6 m

(244.8 ft)

37.3 m

(122.4 ft)

18.6 m

(61 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto; Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

12 V ±30% DC

Power Consumption

Max 11.88 W (12 V DC, warm light on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)

Storage Temperature

–30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")

Net Weight

0.79 kg (1.74 lb)

Gross Weight

1.04 kg (2.29 lb)
