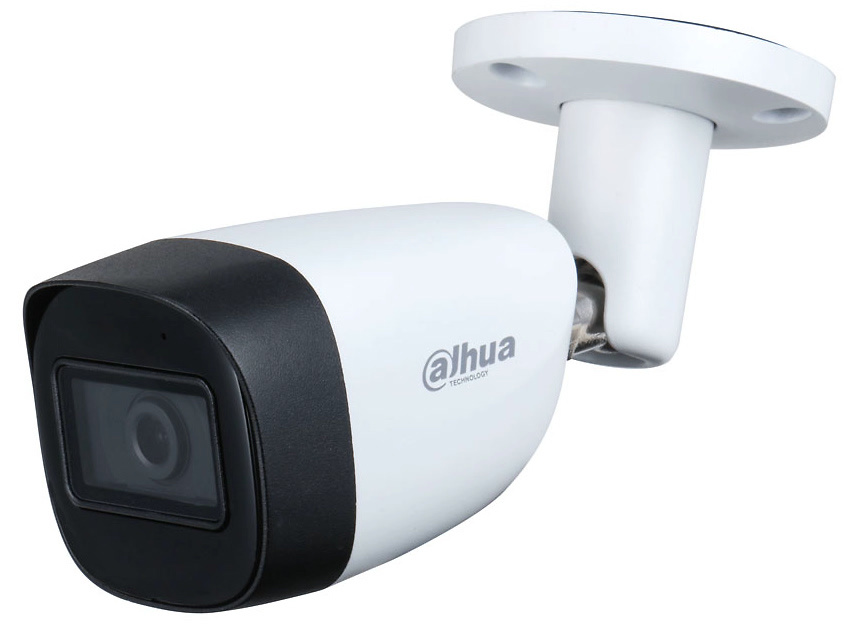

HAC-HFW2241CMP-A-POC-0280B-S2 | DAHUA - Cámara Bullet 4 en 1 StarLight | 2 Megapixel | Lente fija | Smart IR 30 metros | Micrófono integrado | Alimentación PoC (solo CVI)

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2 MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6, 30 IRE, 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 109°; V:58°; D: 127°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.7 m (2.3 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

42.2 m

(138.5 ft)

16.9 m

(55.4 ft)

8.4 m

(27.6 ft)

4.2 m

(13.8 ft)

Video

Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H

Resolution

1080P (1920 × 1080); 960H (960 × 576 / 960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/WDR/HLC

WDR

130dB

White Balance

Auto/Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

POC (only CVI)/12V±30% DC

Power Consumption

Max 3W (12V DC, IR on) PoC (AF)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F); < 95%

(non-condensation)

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F); < 95%

(non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

161.3 mm × 69.7 mm × 70.0 mm (6.35" × 2.75" × 2.75")

Net Weight

0.35 Kg (0.8 lb)

Gross Weight

0.45 Kg (1.0 lb)
