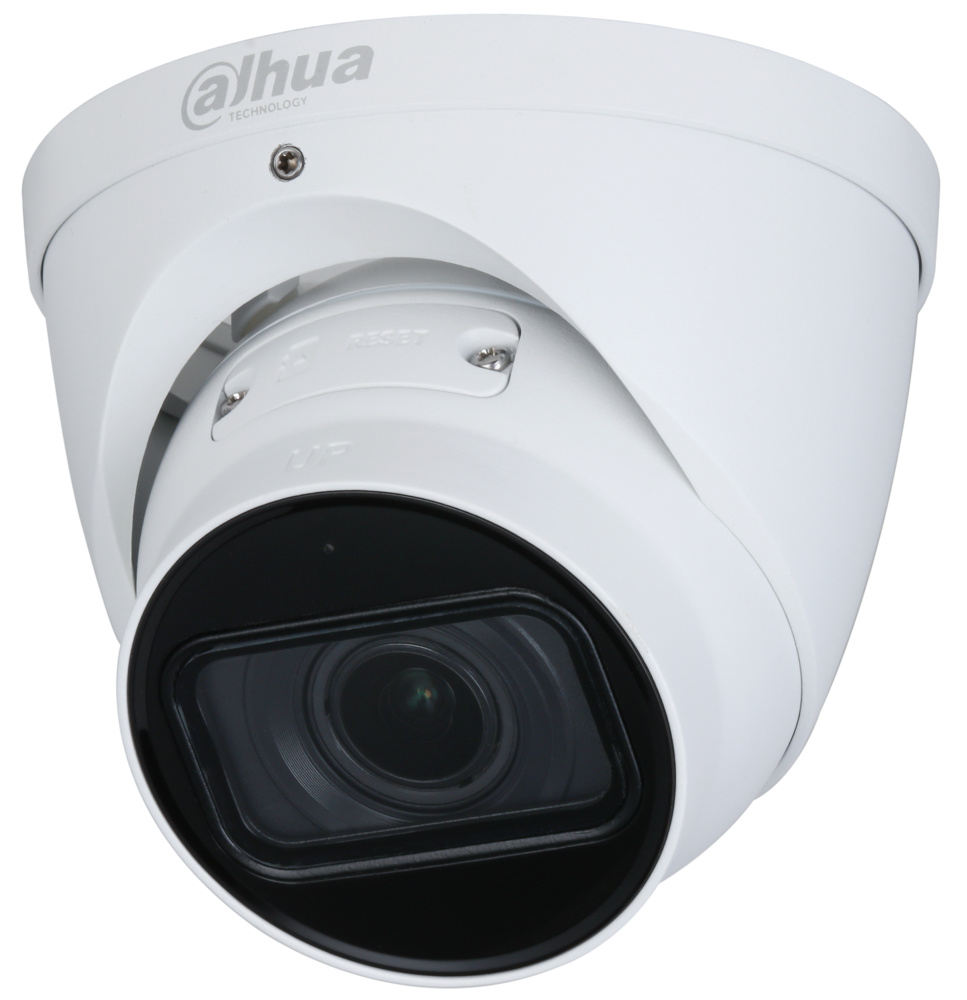

IPC-HDW5842TP-ZE-2712-S3 | DAHUA - Cámara domo IP SatrLight - WizMind - Acupick | 8 Mpx | Óptica motorizada | Smart IR 50 metros | Protección Perimetral | Micrófono Integrado | Detección Facial

Cámara

Sensor de imagen

CMOS de 1/1,8"

máx. Resolución

3840 (H) × 2160 (V)

ROM

4 GB

RAM

2 GB

Sistema de escaneo

Progresivo

Velocidad de obturación electrónica

Automático/Manual 1/3 s–1/100 000 s

mín. Iluminación

0,0008 lux a F1,8 (color, 30 IRE)
0,0004 lux a F1,8 (B/N, 30 IRE)
0 lux (iluminador encendido)

Relación señal/ruido

> 56dB

Distancia de iluminación

40 m (131,23 pies) (IR)

Control de encendido/apagado del iluminador

Auto; Manual

Número de iluminador

2 (LED IR)

Ajuste de ángulo

Panorámica: 0°–360°
Inclinación: 0°–78°
Rotación: 0°–360°

Lente

Tipo de lente

Varifocal motorizado

Montura del lente

φ14

Longitud focal

2,7 mm–12 mm

máx. Abertura

F1.8

Campo de visión

H: 113°–47°; V: 60°–26°; D: 133°–53°

control de iris

Auto

Distancia de enfoque cercana

1,5 m (4,92 pies)

Distancia DORI

Lente

Detectar

Observar

Reconocer

Identificar

W

83,4 m (273,62 pies)

33,4 metros

(109,58 pies)

16,7 metros

(54,79 pies)

8,3 metros

(27,23 pies)

T

189,6 m (622,05 pies)

75,8 metros

(248,69 pies)

37,9 metros

(124,34 pies)

19,0 metros

(62,34 pies)

Inteligencia

ZPE

Sí

IVS (Protección Perimetral)

Intrusión, cable trampa, movimiento rápido (las tres funciones admiten la clasificación y detección precisa de vehículos y humanos); detección de merodeo, reunión de personas y detección de estacionamiento

Detección inteligente de objetos

Objeto abandonado inteligente; objeto perdido inteligente

SMD 3.0

Menos falsa alarma, mayor distancia de detección

IA SSA

Sí

Detección de rostro

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3840 × 2160@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–10 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps; H.265: 12 kbps–13568 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE (802.3af)/ePoE

Power Consumption

Basic: 4.1 W (12 VDC); 5.4 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 7.5 W (12 VDC); 9.0 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

108.3 mm × Φ122 mm (4.26" × Φ4.80")

Net Weight

0.70 kg (1.54 lb)

Gross Weight

0.96 kg (2.12 lb)
