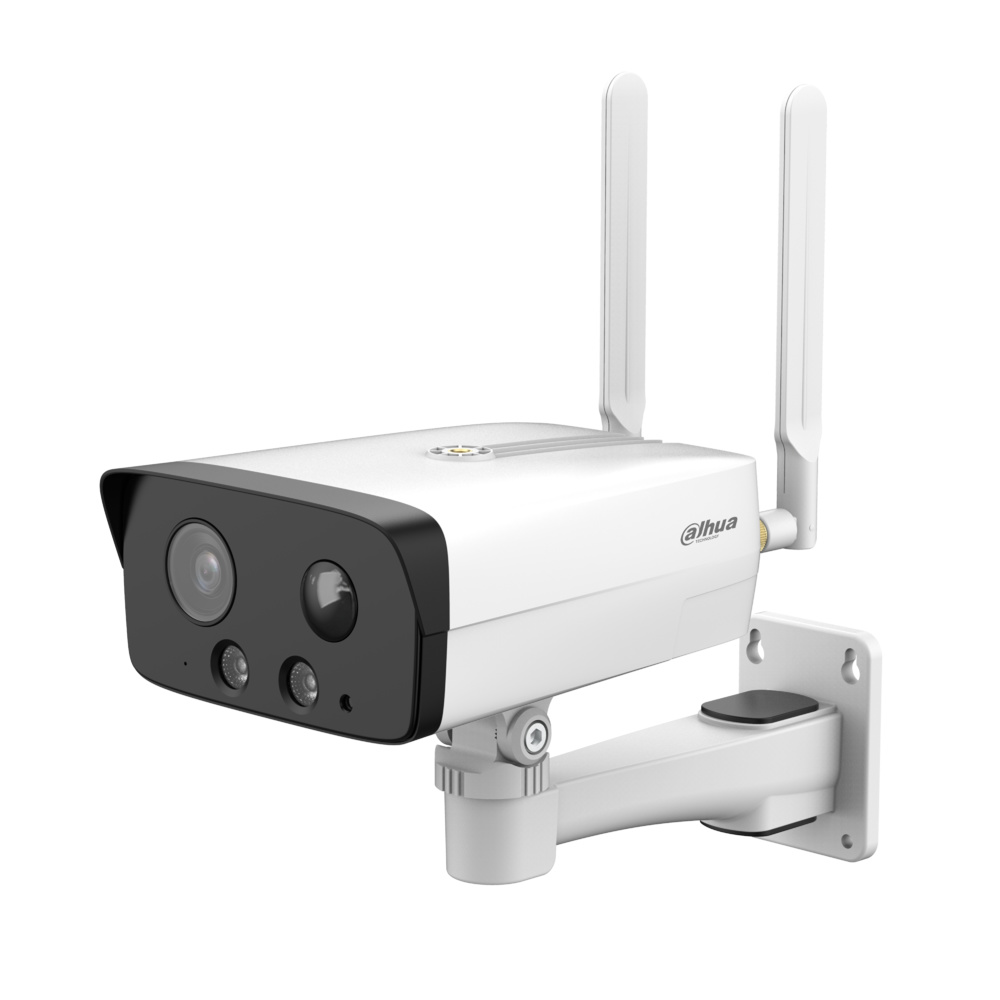

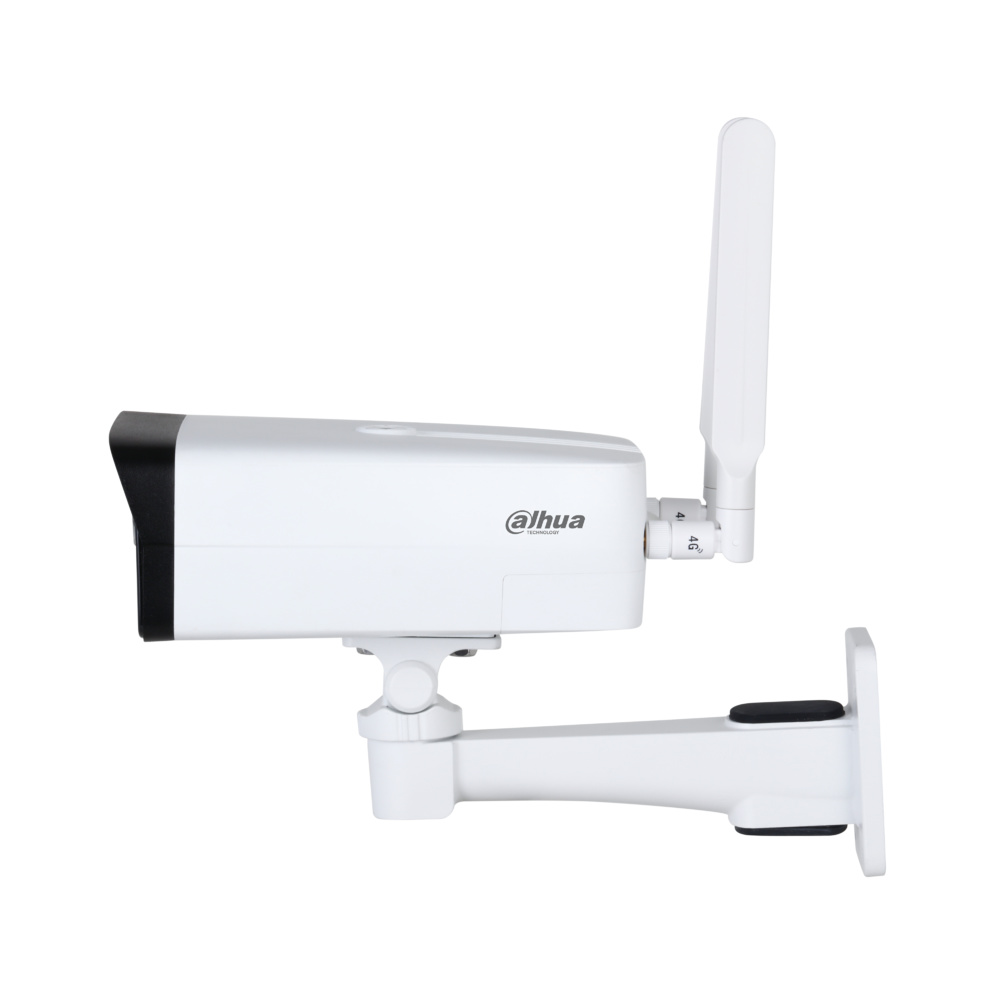

IPC-HFW3441DGP-AS-4G-NL668EAU-B-0280B | DAHUA - Cámara IP/4G LTE Bullet StarLight | WizSense | 4 Mpx | Óptica fija | Leds IR 50 metros

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128MB

RAM

256MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 Lux@F1.6 (Color,30IRE)

0.001 Lux@F1.6 (B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

IR: 50 m (164.04 ft)
Warm light: 30 m (98.43 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

PIR Sensor Distance

10 m (the height of device is 2.5 m, placed horizontally)
5 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6
6 mm: F1.6

Field of View

2.8 mm: H: 102°; V: 54°; D:121°
3.6 mm: H: 84°; V: 42°; D:101°
6 mm: H: 52°; V: 48°; D:61°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.7 m (5.58 ft)
6 mm: 3.2 m (10.50 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.66 ft)

25.4 m

(83.33 ft)

12.7 m

(41.67 ft)

6.4 m

(21.00 ft)

3.6 mm

85.4 m (280.18 ft)

34.2 m (112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

6 mm

124.0 m (406.82 ft)

49.6m (162.73 ft)

24.8m

(81.36 ft)

12.4m

(40.68 ft)

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Video Frame Rate

Main stream: 2688 × 1520 @(1–25/30 fps )

sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30

fps)

Sub stream 1: 1920 × 1080 @ (1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960 ); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a;G.711Mu; G.726; PCM

Alarm

Alarm Event

SD card error; SD card full; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception; PIR alarm; external alarm; low battery alarm; light alarm; sound alarm

Network

Network Port

RJ-45 (10/100 Base-T)

Frequency

LTE FDD:B1/3/5/7/8/20/28
LTE TDD:B38/40/41
WCDMA:B1/5/8
GSM/GPRS/EDGE:B3/5/8

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G); CGI; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

Bulit in eMMC (8 GB); FTP;SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

CE-RED: Radio Equipment Directive 2014/53/EU;

FCC: 47 CFR FCC Part 15; Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

RS-485

1 (Only report the information of solar battery, such as power and battery level)

Power

Power Supply

12 VDC

Power Consumption

Sleep Mode: 0.03 W

General Mode: 4 W

Power Saving Mode: 2 W

Max. (4G pulling stream+IR+speaker+warning light): 7.5 W

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

132 mm × 219 mm×179 mm (5.20" × 8.62" × 7.05")

(L × W × H)

Packaging Dimensions

280 mm × 239 mm × 146 mm (11.02" × 9.41" × 5.75")

(L × W × H)

Net Weight

680 g (1.50 lb)

Gross Weight

1180 g (2.60 lb)
