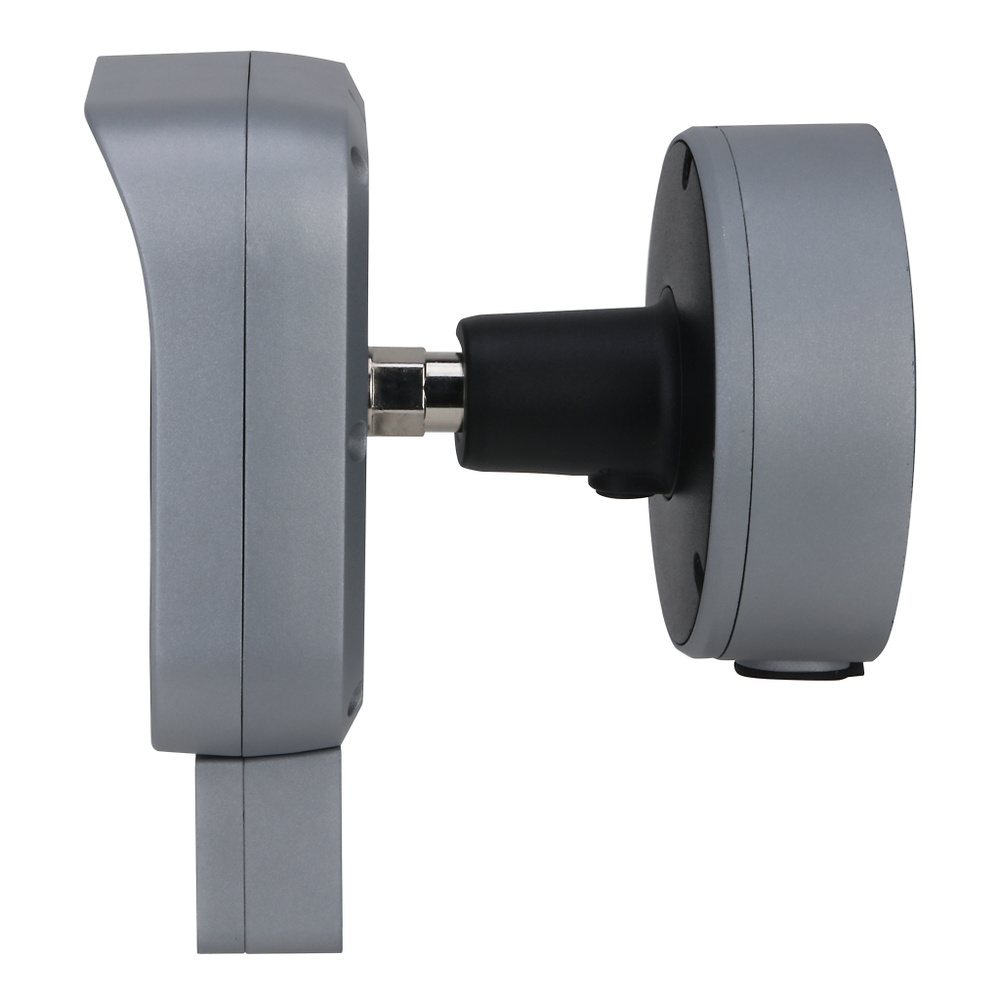

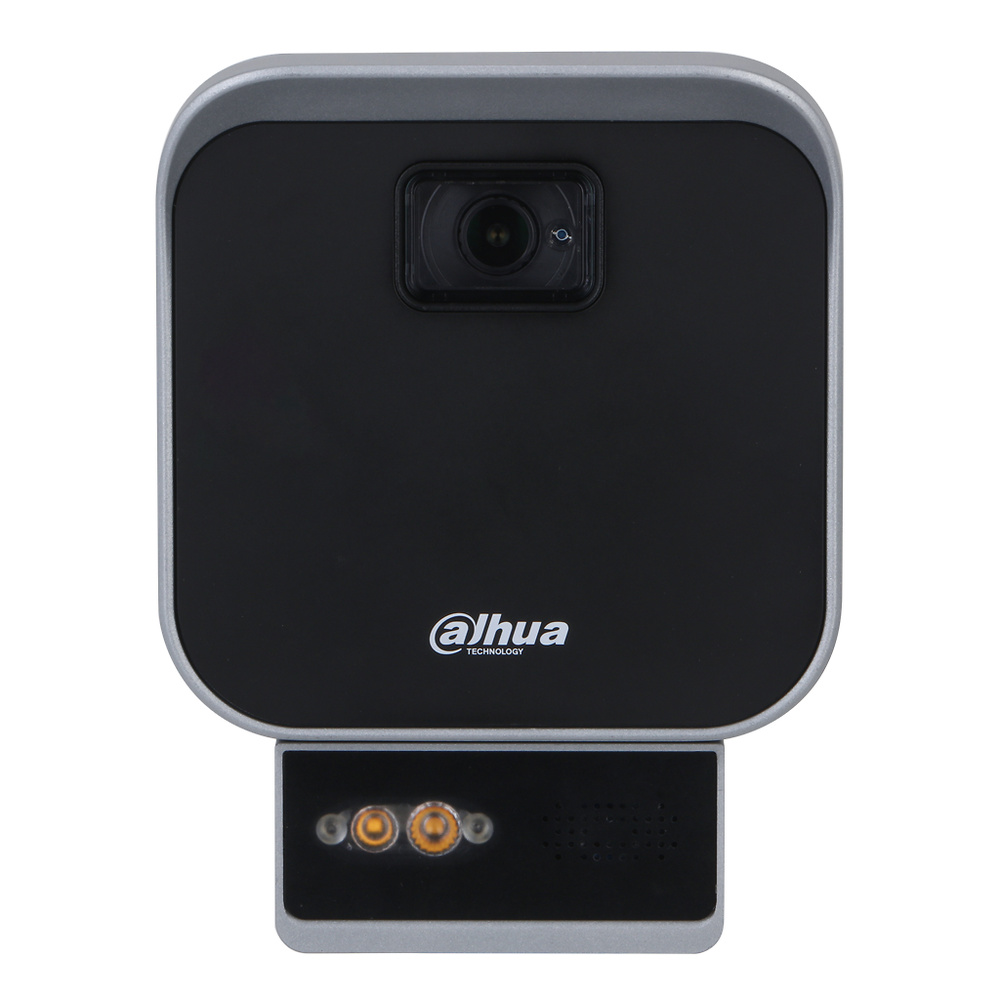

PFR5QI-E60-PV | DAHUA - Radar visual para la detección de Intrusión | Luz blanca de advertencia y Altavoz para disuasión | Filtrado de objetivos humanos y vehículos

Radar

Max. Target Number

64

Distance

60 m (196.85 ft)

Angle

Horizontal: 120°
Pitch angle: 26°

Distance Accuracy

±0.5 m (1.64 ft)

Angle Accuracy

±1°

Max. Detection Speed

43.2 km/h, continuous trace

Min. Detection Speed

0.72 km/h, continuous trace

Modulation Method

FMCW

Scan Frequency

20 Hz

Working Frequency

60 GHz–61 GHz

Supported Target Type

Human; vehicle

Transmission Power

< 20 dBm (100mW)

Camera

Image Sensor

1/1.8" CMOS

Pixel

4MP

Max. Resolution

2560 (H) × 1440 (V)

Electronic Shutter Speed

1/3 s–1/100000 s

Min. Illumination

0.0036 Lux @F1.6 (Color); 0.0036 Lux @F1.6 (B/W); 0 Lux (IR on)

S/N Ratio

> 56 dB

Illumination Distance

35 m (114.83 ft) (0°, visible human body shape)

Illuminator Number

4

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm (equivalent focal distance of 1/2.7")

Max. Aperture

F1.6

Field of View

Horizontal: 104°; Vertical: 55°; Diagonal: 121°

Iris Control

Fixed

Close Focus Distance

0.2 m

Video

Video Compression

H.265; H.264; H.264H; H.264B

Smart Codec

H.264/H.265

Video Frame Rate

Main stream:
50 Hz: 25 fps (2560 × 1440); 25 fps (2048 × 1536); 25 fps (1920 × 1080); 25 fps (1280 × 960); 25 fps (1280 × 720)
60 Hz: 30 fps (2560 × 1440); 30 fps (2048 × 1536); 30 fps (1920 × 1080); 30 fps (1280 × 960); 30 fps (1280 × 720)

50 Hz: 25 fps (704 × 576); 25 fps (352 × 288)
60 Hz: 30 fps (704 × 480); 30 fps (352 × 240)
Third stream:
50 Hz: 25 fps (1920 × 1080); 25 fps (1280 × 960);

25 fps (1280 × 720)
60 Hz: 30 fps (1920 × 1080); 30 fps (1280 × 960);

30 fps (1280 × 720)

Video Bit Rate

H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

102 dB

White Balance

Auto/manual/natural/street lamp/outdoor

Gain Control

Auto/manual

Noise Reduction

2D NR/3D NR

Default Bit Rate with Default Resolution

6144 Kbps (2560 × 1440)

Defog

Yes

Image Stabilization

Yes

LDC

Yes

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; intrusion; tripwire

Alarm Input

3

Alarm Output

2, support alarm linkage

Alarm Linkage

Snapshot/SD card recording/email

Network

Network Port

1 (RJ-45; support 10 M/100 M network data)

Network Protocol

IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x

Interoperability

ONVIF (Profile S); CGI; Imou

Storage

NAS; FTP; Micro SD card (128 G)

Browser

IE 7 and later
Chrome 45 and earlier
Firefox 46 and earlier

User/Host

20 (total bandwidth: 64 M)

SDK and API

Yes

Management Software

DSS

Sound and Light Alarm

Number of Warning Light

2

Warning Light Mode

Yes, flashing mode, solid on mode

Warning Light Delay

Yes, 5 s–30 s

Max. Distance of Warning Speaker

10 m (32.81 ft) (outdoor open space, 60 dB)

Warning Speaker Mode

1–3 times

Alarm Audio Upload & Record

Yes, up to 10 audios

Alarm Audio Import & Output

Yes

Function

Image Setting

Brightness; Contrast; Sharpness; Saturation; Gamma

OSD Overlay

Time; channel; location; custom

Record Mode

Manual record; scheduled record; alarm record;
Record priority: Manual > external > schedule

Default

Support one-click restoring

User Management

Up to 20

Security

Username and password; MAC address; HTTPS; IEEE 802.1x ; network access control

Region Management

Pre-warning zone; alarm zone; shield zone

Target Filtering

Yes, human/vehicle

Speed Filtering

Yes, 0–40 km/h
(Objects whose speeds are not within the target speed range will not trigger alarms)

Recognition Sensitivity

Yes, human, vehicle recognition sensitivity configurable

Radar Structuring

Yes, target track displayed on live view, including distance, angle, speed and type

Radar OSD Detection Overlay

Yes, 8 positions

Device Attitude

Yes, display pitch angle and roll angle

Protection Zone Mapping

Yes, draw on live view to define actual radar protection zone

Auto Calibration

Yes, automatically calibrate radar and image

Manual Calibration

Yes, manually calibrate radar and image

Sound and Light Linkage

Yes

Power

Operating Voltage

12V DC (±30%); PoE (802.3at)

Power Supply

12V DC/POE

Power Consumption

Basic power consumption: 10W; Max. power consumption: 22W

Port

Terminal block

Port

SD Card

Yes

Indicator Light

Yes. Network indicator (yellow); operation indicator (red and green); power indicator (green)

Audio Input

1 × 3.5 mm port

Audio Output

1 × 3.5 mm port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Environment

Operating Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP66

Structure

Casing

Metal + plastic

Product Dimensions

160.0 mm × 194.4 mm × 160.0 mm

(6.30" × 7.65" × 6.30") (L × W × H)

Packaging Dimensions

277.0 mm × 274.0 mm × 224.0 mm

(10.91" × 10.79" × 8.82") (L × W × H)

Packaging Method

4 in one package

Net Weight

2.51 kg (5.53 lb)

Gross Weight

2.80 kg (6.17 lb)

Installation

Pole mount; wall mount

Bracket

PFA154

Power Adapter

Optional

Certifications

Certifications

CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 62368-1
