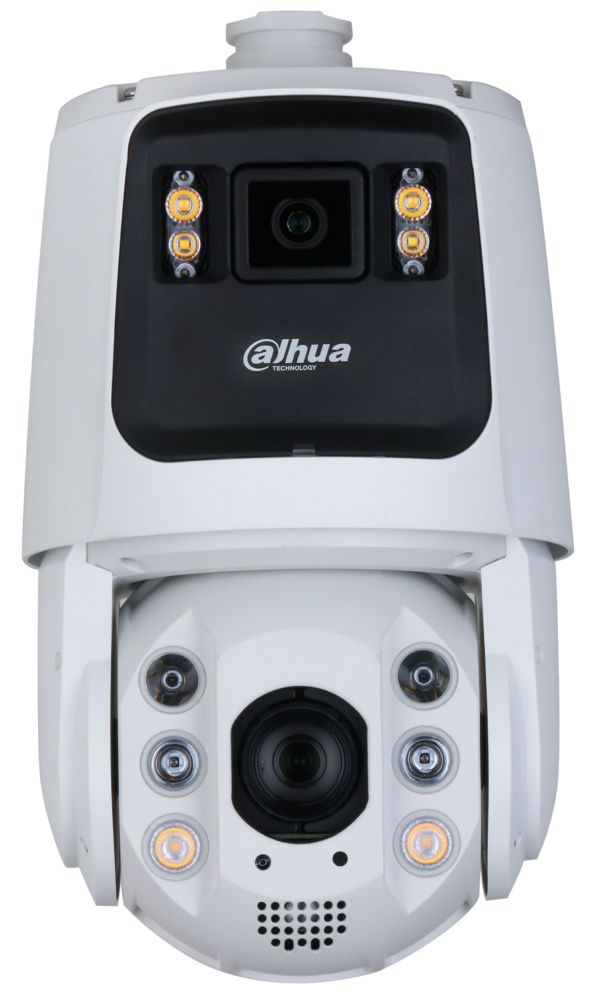

SDT7C424-4F-ZBZJ-APV-0400 | DAHUA - Cámara IP PTZ | 4 Mpx | Zoom Óptico 24x | Leds IR 150 metros | Protección perimetral y Detección Facial

Camera

Image Sensor

Panoramic: 1/1.8" CMOS

Detail: 1/2.8" CMOS

Pixel

Panoramic: 4 MP

Detail: 4 MP

Max. Resolution

Panoramic: 2560 (H) × 1440 (V)

Detail: 2560 (H) × 1440 (V)

ROM

Panoramic: 4 GB

Detail: 256 MB

RAM

Panoramic: 1 GB

Detail: 1 GB

Electronic Shutter Speed

Panoramic: 1/1 s–1/30,000 s

Detail: 1/1 s–1/30,000 s

Scanning System

Progressive Scanning

Min. Illumination

Panoramic:

Color: 0.001 lux@F1.0

B/W: 0.0001 lux@F1.0

0 lux (white light on)

Detail:

Color: 0.005 lux@F1.6

B/W: 0.0005 lux@F1.6

0 lux (IR light on)

Illumination Distance

30 m (98.44 ft) (white light)

150 m (49.13 ft) (IR)

Illuminator On/Off Control

Zoom Prio; manual; auto; off

Illuminator Number

Panoramic: 4x white light

Detail: 2x white light; 4x IR

Lens

Focal Length

Panoramic: 4 mm

Detail: 4.8 mm–115 mm

Max. Aperture

Panoramic: F1.0

Detail: F1.6–F3.6

Field of View

Panoramic:

H: 95°; V: 52.5° ; D: 116°

Detail:

H: 53.1°–3.4°; V: 30.4°–1.95°; D: 59.3°–3.9°

Optical Zoom

24×

Focus Control

Auto; Semi-Auto; Manual

Close Focus Distance

Panoramic: 0.2 m (0.66 ft)

Detail: 0.5 m–5 m (1.64 ft–16.4 ft)

Iris Control

Panoramic: Fixed

Detail: Auto; manual; fixed

DORI Distance

Detect

Observe

Recognize

Identify

Panorama:
102 m
(334.66 ft)
Detail:
1,928 m
(6325.46 ft)

Panorama:
40.8 m
(133.86 ft)
Detail:
771.2 m
(2530.18 ft)

Panorama:
20.4 m
(66.9 ft)
Detail:
385.6 m
(1265.09 ft)

Panorama:
10.2 m
(33.46 ft)
Detail:
192.8 m
(632.55 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless

Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–160°/s

Tilt: 0.1°–120°/s

Preset Speed

Pan: 240°/s; Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset, Tour, Scan, Track

PTZ Protocol

DH–SD

Pelco–P/D (auto recognition)

Intelligence

Face Detection

Yes

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Auto Tracking

Yes

Video

Video Compression

H.265, H.264B, H.264M, H.264H ,MJPEG, smart H.265, smart H.264

Streaming Capability

3 streams

Resolution

Panoramic:

4M (2560 X 1440) , 1080p (1920 × 1080) , 1.3M (1280 × 960) , 720p (1280 ×720) , D1 (704 × 576/704 × 480) , CIF (352 × 288/352 × 240)

Detail:

4M (2560 X 1440) , 1080p (1920×1080) , 1.3M (1280 × 960) , 720p (1280 ×720) , D1 (704 × 576/704 × 480) , CIF (352 × 288/352 × 240)

Default Bit Rate with Default Resolution

3072 Kbps (2560 × 1440, H.265)

Video Frame Rate

Panoramic:

Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)

sub stream 1: D1/CIF (1–25/30 fps)

sub stream 2: 720p/CIF (1–25/30 fps)

Detail:

Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)

sub stream 1: D1/CIF (1–25/30 fps)

sub stream 2: 720p/CIF (1–25/30 fps)

Bit Rate Control

Constant Bite Rate; Variable Bite Rate

Video Bit Rate

H. 265: 1024 Kbps–7936 Kbps

Day/Night

Panoramic: Color/B/W

Detail: Auto (ICR)/Color/B/W

BLC

Panoramic: Yes

Detail: Yes

WDR

Yes

HLC

Panoramic: Yes

Detail: Yes

White Balance

Panoramic: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Panoramic: Auto; manual

Detail: Auto; manual

Noise Reduction

Panoramic: 2D NR; 3D NR

Detail: 2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Panoramic: Electronic Defog

Detail: Electronic Defog

Flip

180°

S/N Ratio

≥ 55 dB

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: 47 CFR FCC Part15, Subpart B,

Class A ANSI C63.4-2014

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2–Layer2; G722.1

Network

Network Port

RJ–45 (10/100 Base–T)

Network Protocol

HTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, Qos, FTP, UPnP, ICMP, SNMP, SNMPv, 1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, TCP

Interoperability

ONVIF, CGI, Dahua SDK

Streaming Method

Unicast/Multicast

User/Host

20

Storage

FTP; Micro SD card (128 GB)

Browser

IE7 and later versions

Chrome 42 and earlier versions

Firefox 52 and earlier versions

Safari

Management Software

Smart PSS, DSS, NVR

Mobile Client

IOS, Android, iPhone, iPad, Windows Phone

Port

Alarm I/O

2/1

Audio I/O

1/1

Two-way Audio

Yes

Alarm Linkage

Capture; preset; tour; pattern; recording; triggering on–off value output; audio; sending email

Alarm Event

Motion/tampering detection, audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

36 VDC/2.23 A ± 25% (included)

Power Consumption

Basic: 20 W

Max. (illuminator + heater + PTZ working + sound and light alarm): 45 W

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤ 95%

Protection

IP66; TVS 6000 V lightning proof, surge protection and voltage transient protection

Structure

Casing

Plastic + aluminum alloy

Product Dimensions

358 mm × Φ202 mm (14.09" × 7.95")

Packaging Dimensions

510.0 mm × 312.0 mm × 312.0 mm (21.42" × 7.70" × 6.75") (L × W × H)

Net Weight

5.6 kg (12.35 lb)

Gross Weight

7.15 kg (15.77 lb)
