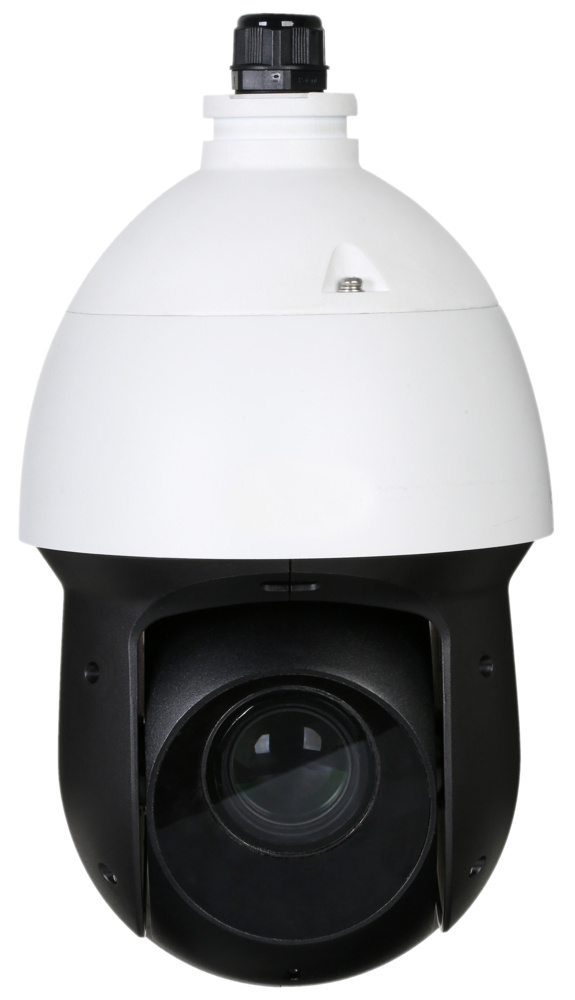

XS-SD6325ISWA-2E4N1 | X-SECURITY - Domo motorizado HDCVI | 2 Megapixel | Zoom 25x | Leds IR 100 metros

Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Pixel

2MP

Max. Resolution

1920 (H) x 1080 (V)

ROM

16 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s–1/100000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux@F1.6 (IR on)

Illumination Distance

100 m (328.08 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

6

Lens

Focal Length

4.8 mm–120 mm

Max. Aperture

F1.6–F3.5

Field of View

H: 58.5°–2.8°;

V: 33.2°–1.5°;

D: 67.5°–3.2°

Optical Zoom

25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

1655.2 m (5430.45 ft)

656.8 m (2154.86 ft)

331.0 m (1085.96 ft)

165.5 m (542.98 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360°Tilt: -15°–+90°; auto flip 180°

Manual Control Speed

Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s

Preset Speed

Pan: 240°/s; Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

Video

Resolution

1080P (1920 × 1080); 720P (1280 × 720);

D1 (704 × 576/704 × 480)

Frame Rate

1080P (25/30 fps), 720P (25/30/50/60 fps)

Day/Night

Support

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Defog

Electronic

Digital Zoom

16x

Flip

0°/180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a; G.711Mu

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Audio Input

1 (LINE IN; bare wire)

Alarm Input

2

Alarm Output

1

Power

Power Supply

DC 12V/3A ± 10%

Power Consumption

9.6 W
23.2 W (IR light on, PTZ)

Environment

Operating Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤ 95%RH

Protection

IP66; TVS 6000V lightning protection; surge protection

Structure

Dimensions

295.4 mm × Φ160.0 mm (11.63" × Φ6.30")

Net Weight

3 kg (6.61 lb)

Gross Weight

4.2 kg (9.26 lb)
