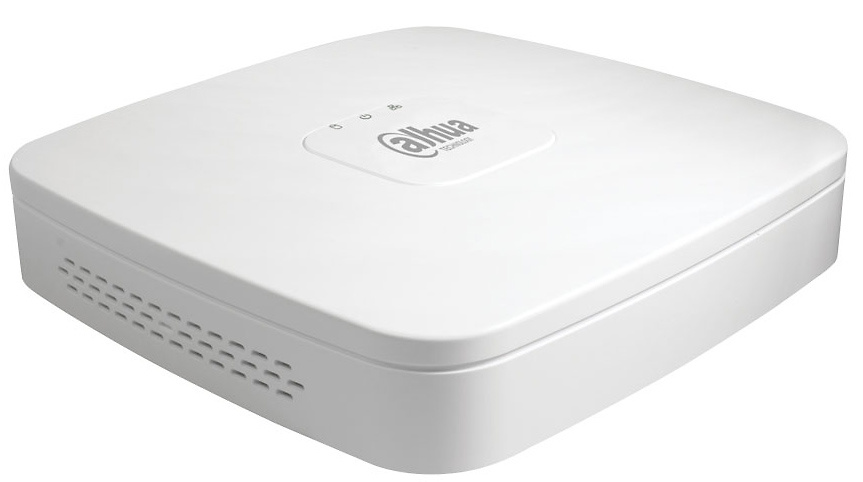

XVR5108C-I3 | DAHUA - Grabador XVR 5 en 1 WizMind | 8 canales BNC + 4 Canales IP | Protección Perimetral

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 8 face images/s each channel) )

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.

2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps

IP Camera Input

Up to 12 channels of IPC access
4 IP channels by default + 8 channels (analog channels are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled

Encoding Capacity

Main stream:

5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)

5M-N Mode:

All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)

Sub stream: D1, CIF@(1–15fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Samsung

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; P2P; Auto Registration

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome
IE9 or later
Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9
It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm

General Alarm

Motion detection; video loss; video tampering

Anomaly Alarm

No disk; disk error; disk full; offline; IP conflict; MAC conflict

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; voice prompt; buzzer; log; preset; email

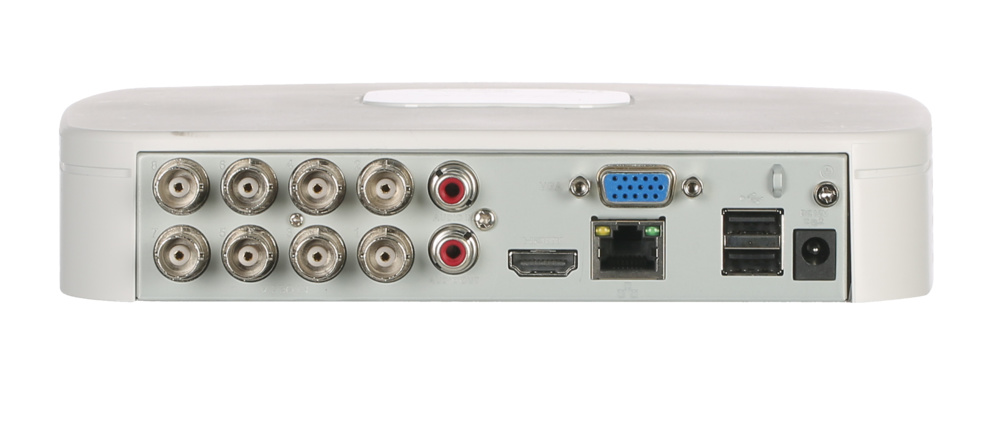

Ports

Audio Input

1-channel RCA
8-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

1 SATA port, up to 16 TB capacity. The maximum HDD capacity varies with environment temperature

USB

2 (2 rear USB 2.0 ports)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 2 A

Power Consumption

<7 W (without HDD)

Net Weight

0.56 kg (1.24 lb)

Gross Weight

1.05 kg (2.32 lb)

Product Dimensions

204.6 mm × 210.9 mm × 45.6 mm (8.06'' × 8.30'' × 1.80'') (W × D × H)

Packaging Dimensions

364.0 mm × 96.0 mm × 261.0 mm (14.34'' × 3.78'' × 10.28'') (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

≤93% (RH)

Installation

Desktop

Certifications

CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035
